Comfortable, High-Throughput Routine Microscopy

CX43 and CX33 biological microscopes enable you to remain comfortable during long periods of routine observation. The microscope frame conforms to your hands, and the location of the control knobs maximizes ergonomics to improve work efficiency. With minimal movement, you can quickly set a specimen with one hand, while adjusting the focus and operating the stage with the other hand. The microscopes can also feature an optional camera port for digital imaging.

Maintain Preferred Observation Conditions with Minimal Adjustments

Uniform Illumination with Consistent Color Temperature

The CX33 LED illumination provides several advantages, both immediate and over the long-term:

• Produces daylight conditions so specimens can be viewed with their natural colors

• Consistent color temperature at any brightness, so can avoid spending time making adjustments when you change the brightness

• A long 60,000-hour lifetime with the brightness level remaining stable throughout

Fixed K?hler Illumination for Comfortable Viewing

CX33 microscopes provide fixed K?hler illumination, enabling you to achieve the right illumination without adjusting the condenser.

Remain Comfortable during Extended Usage

Ergonomically Positioned Focus Knob

The low-positioned focusing knob enables you to conduct your observations while keeping your hands and forearms in comfortable positions resting on the desk. When working under high magnification, the focusing stopper prevents a specimen from accidentally hitting an objective.

Ergonomic Stage and Eyepiece Position

CX33 microscopes offer features that support you through long hours in the lab:

• Low-positioned stage to enhance comfort and reduce fatigue

• Stage visibility from the eye point position to enable you to smoothly set and check specimens

• Low stage knob that can be controlled with just a light touch, so you can quickly and comfortably view your specimens

Excellent Optical Performance for Flat Images

CX33 microscopes can be used with plan achromat objectives, which provide clear images with high image flatness over a wide field of view. You can view specimens clearly with even illumination during routine observations.

*The CX43 is compatible with all UIS2 objectives while the CX33 comes with specially designed plan achromat objectives.

Smooth Magnification Change

The revolving nosepiece is positioned at a lower height, enabling you to easily change objectives with your elbows resting comfortably on the desk.

The nosepiece also faces inward providing a larger working space when changing specimens or adding immersion oil.

Contrast Enhancement with a Simple Aperture Stop Operation

Quickly enhance the contrast by narrowing down the aperture diaphragm. This technique provides the same, if not better, image when adjusting the condenser.

Specimen Holders that Match Your Observation Style

Multiple stage accessories are available to help improve efficiency. When using the specimen holder sheet, there’s no need to pinch the specimen with the holder. Instead, the holder enables you to easily maneuver the slide while it’s on the sheet. The double specimen holder can hold a large specimen or two standard sized glass slides.

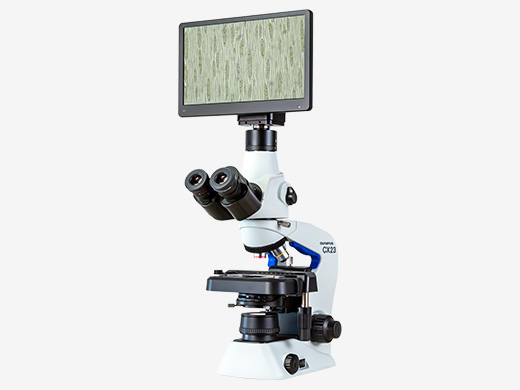

Easily Capture and View Images with a Digital Camera and Heads-Up Display

Easily share and display images with your colleagues using the wireless LAN-enabled EP50 digital camera. Combine this camera with our CX series microscopes to transform your lab into a digital one. The heads-up display enables easy viewing in a group setting. Everyone can see the observed specimen in real-time without having to take turns viewing through the oculars.

Brightfield(Kidney)	Brightfield(Cervical cells)
Brightfield(Tuberculosis bacteria)	Darkfield(Erythrocytes and leukocytes)
